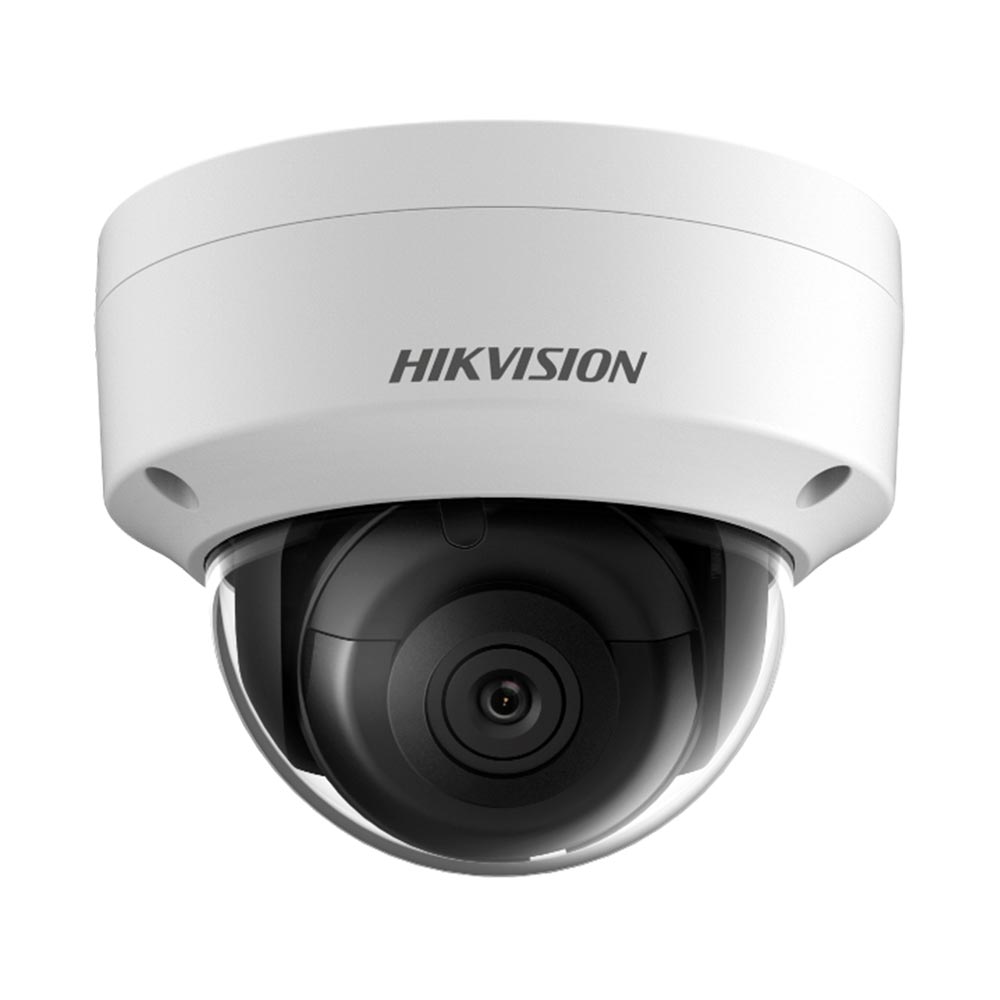

2 MP Outdoor WDR Fixed Dome Network Camera
Log in om prijzen te zien
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal proof (IK10)
- Robust structure design with full metal materials
| Image sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Angle Adjustment | Pan: 0° to 355°, Rotate: 0° to 355°, Tilt: 0° to 75° |
| Day & Night | IR Cut Filter |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Aperture | F2.0 |
| Focus | |
| Lens mount | M12 |
| Lens type | 2.8/4/6/8 mm |
| Aperture type | Fixed |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| Max. Resolution | 1920 x 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
| Audio Compression Standard | G.711, G722.1, G726, MP2L2, MP3, PCM |
| Audio Sampling Rate | 16kHz, 32kHz, 44.1kHz, 48kHz, 8kHz |
| Environment Noise Filtering | Yes |
| Alarm Trigger | HDD error, HDD full, Illegal login, IP address conflict, Motion detection, network disconnected, video tampering |
| API | ISAPI, ONVIF (PROFILE S, PROFILE G) |
| Application | Hik-Central, Hik-Connect, iVMS-4200 |
| Network Storage | ANR, local storage, Micro SD/SDHC/SDXC card (128G), NAS (NFS,SMB/CIFS) |
| Protocols | 802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTPS, SMTP, SNMP, TCP/IP, UPnp™ |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+, Plug-in required live view: IE8+ |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by alarm in (-S) |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D, DNR/HLC |
| Image Settings | brightness, contrast, Rotate mode, saturation, sharpness, white balance |
| Target Cropping | No |
| Audio Input | 1 input (line in/mic in) |
| Audio Output | 1 output (line out) |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Hardware Reset | Yes |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Face Detection | Yes |
| Smart Event | Face detection, Intrusion detection, Line crossing detection |
| Camera Dimension | Camera: Φ 111 × 82.4 mm, Package: 134 × 134 × 108 mm |
| Camera Weight | 610g |
| Firmware Version | 5.6.3 |
| General Function | Anti-flicker, heartbeat, HTTP listening, mirror, password reset via e-mail, pixel counter, privacy masks, three streams |
| Linkage Method | memory card, network storage, pre-record and post-record |
| Power consumption | 0.2 A to 0.1 A, max. 7.5 W, 12 VDC, 0.5 A, max. 6 W,PoE |
| Power supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug, 12 VDC/PoE ( IEEE 802.3af) |
| Working temperature | 30 °C to +60 °C |
| IP protection level |
